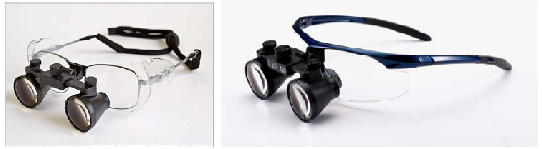

Galilean Loupes - Flip up 2.5X 3.0X 3.5X
Order No. Please see below

Galilean Loupes
















• Razor-sharp, edge-to-edge clarity
• Extremely high resolution optics
• Lightweight design
• Multi-coated for: anti-glare, anti-fog and scratch-resistance
• Manufacturer direct pricing

Light weight, Galilean type binocular loupes. Maximum ease of use, combined with multi-functional capabilities. Available in a variety of working distances for your maximum comfort .Multi-coated precision lenses for superb clarity and reduced reflection. Ultra light-weight body and frame for maximum comfort. Fully adjustable viewing angle, pupil distance and flip-up function.



Galilean loupes is the most popular model. It offers the widest field of view and longest depth of focus. It has excellent clear view and great optical capability to provide the operator with the optimal magnification while providing extended field of view



Technical Specification:



Model Power Working distance Field of View Depth of Field Weight

250S 2.5x 340mm / 13,4 in 90mm / 3,5 in 80mm / 3,1 in 42gr / 1.35 ounce

250R 2.5x 420mm / 16.5 in 100mm / 3,9 in 90mm / 3,5 in 42gr / 1.35 ounce

250L 2.5x 500mm / 19,7 in 110mm / 4,3 in 110mm / 4,3 in 42gr / 1.35 ounce

250XL 2.5x 550mm / 21,7 in 125mm / 4,9 in 120mm / 4,7 in 42gr / 1.35 ounce

300S 3.0x 340mm / 13,4 in 60mm / 2.4 in 60mm / 2.4 in 48gr / 1.55 ounce

300R 3.0x 420mm / 16.5 in 65mm / 2.6 in 80mm / 3,1 in 48gr / 1.55 ounce

300L 3.0x 500mm / 19,7 in 70mm / 2.8 in 90mm / 3.5 in 48gr / 1.55 ounce

300XL 3.0x 550mm / 21,7 in 75mm / 3 in 100mm / 3.9 in 48gr / 1.55 ounce

350S 3.5x 340mm / 13,4 in 55mm / 2.2 in 50mm / 2 in 52gr / 1.68 ounce

350R 3.5x 420mm / 16.5 in 60mm / 2.4 in 55mm / 2.2 in 52gr / 1.68 ounce

350L 3.5x 500mm / 19,7 in 65mm / 2.6 in 60mm / 2.4 in 52gr / 1.68 ounce

350XL 3.5x 550mm / 21,7 in 70mm / 2.8 in 65mm / 2.6 in 52gr / 1.68 ounce

All Models Adjustable viewing angle: 0 - 45°

All Models Adjustable pupil distance: 46mm/1.6" - 70mm/2.8"

All Models Average weight including (medium) frame: 90grams / 2.9 ounce
