Headband Prismatic Loupes

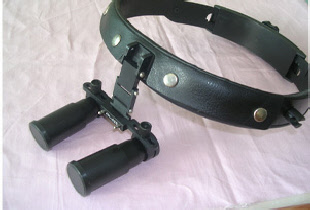

because the keperlilean loupes is heavy, so the eyewear style will caused the user uncomfortable when using more than 20 minitues. we design the headband style for keperlilean loupes, and it can be flip up and the view angle can be wide adjustable.

• Razor-sharp, edge-to-edge clarity
• Extremely high resolution optics
• Lightweight design
• Multi-coated for: anti-glare, anti-fog and scratch-resistance
• Manufacturer direct pricing



uses a prism system, which offers very clear image. offers comfortable view angle. Prism system give you a wider field of view with maximum magnification. flip-up, dental loupes & surgical loupes, offer the maximum ease of use, combined with multi-functional capabilities, Available in a variety of magnification & working distances

working distance 370mm 420mm 460mm 500mm 550mm for optional.

headband keperlilean loupes:

Prismatic binoculars loupes technical data

magnification working distance depth of view fields of view

4.0x 370mm 40mm 60mm

4.0x 420mm 40mm 60mm

4.0x 460mm 40mm 60mm

4.0x 500mm 40mm 60mm

4.0x 550mm 40mm 60mm

5.0X 370mm 35mm 55mm

5.0X 420mm 35mm 55mm

5.0X 460mm 35mm 55mm

5.0X 500mm 35mm 55mm

5.0X 550mm 35mm 55mm

6.0X 370mm 25mm 45mm

6.0X 420mm 25mm 45mm

6.0X 460mm 25mm 45mm

6.0X 500mm 25mm 45mm

6.0X 550mm 25mm 45mm

7.0X 370mm 20mm 40mm

7.0X 420mm 20mm 40mm

7.0X 460mm 20mm 40mm

7.0X 500mm 20mm 40mm

7.0X 550mm 20mm 40mm

8.0X 370mm 15mm 35mm

8.0X 420mm 15mm 35mm

8.0X 460mm 15mm 35mm

8.0X 500mm 15mm 35mm

8.0X 550mm 15mm 35mm
