TTL Combines Flip Up Loupes 2.5X 3.0X 3.5X
Order No. Please see below

TTL Combines Flip Up













• Razor-sharp, edge-to-edge clarity
• Extremely high resolution optics
• Lightweight design
• Multi-coated for: anti-glare, anti-fog and scratch-resistance
• Manufacturer direct pricing

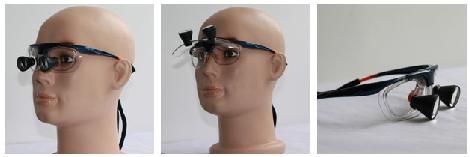

TTL combine flip up loupes are new designed. this kind of loupes is TTL style,so that can provide wide field view, and light weight. it is also can be flip up, this function is new, because the regular TTL loupes is unable adjustable. TTl combbine flip up is also can be mounted prescription lens. regular TTL loupes glue the loupes barrels on the eyewear lens, so regualr TTL can't be mounted prescription lens. but TTL combines can be mounted prescription lens. so we called the TTL combines is "next generiation loupes".

regarding the TTL combine flip up loupes, there are 2.5x 3.0x 3.5x magnification.

the optic technic description is same as regualr TTL loupes . there are different working distance is optional: 340mm 420mm 500mm 550mm.

2.5x TTL combines flip up loupes, it is very light and laconic appearance.



Technical Specification:



Model Power Working Distance Field of View Depth of Field Weight

250S 2.5x 340mm / 13,4 in 90mm / 3.6 in 80mm / 3.2 in 60gr / 1.9 ounce

250R 2.5x 420mm / 16.5 in 100mm / 4.0 in 90mm / 3.6 in 60gr / 1.9 ounce

250L 2.5x 500mm / 19,7 in 110mm / 4.4 in 110mm / 4.4 in 60gr / 1.9 ounce

250XL 2.5x 550mm / 21,7 in 120mm / 4.8 in 120mm / 4.8 in 60gr / 1.9 ounce

All Models Through the lens. Adjustable viewing angle not allowed ,but can flip up

All Models There are three pupil distance: 59-61mm.61-63mm,63-65mm

All Models Average weight including frame: 60 grams / 1.9 ounce

3.0x TTL combine flip up loupes, also is light and laconic appearance with 3.0 magnification

Model Power Working Distance Field of View Depth of Field Weight

300S 3x 340mm / 13,4 in 60mm / 2.4 in 50mm / 2.0 in 65gr

300R 3x 420mm / 16.5 in 70mm / 2.8 in 60mm / 2.4 in 65gr

300L 3x 500mm / 19,7 in 80mm /3.2 in 80mm / 3.2 in 65gr

300XL 3x 550mm / 21,7 in 90mm / 3.6 in 90mm / 3.6 in 65gr

All Models Through the lens. Adjustable viewing angle not allowed,but can be flip up

All Models Three are pupil distance: 59-61mm,61-63mm,63-65mm

All Models Average weight including frame:65gre

3.5x TTL combines flip up loupes, also is light and laconic appearance with 3.5 magnification

Model Power Working Distance Field of View Depth of Field Weight

350S 3.5x 340mm / 13,4 in 50mm / 2 in 50mm / 2.0 in 73gr / 2.36 ounce

350R 3.5x 420mm / 16.5 in 55mm / 2.2 in 55mm / 2.2 in 73gr / 2.36 ounce

350L 3.5x 500mm / 19,7 in 65mm / 2.6 in 60mm / 2.4 in 73gr / 2.36 ounce

350XL 3.5x 550mm / 21,7 in 70mm / 2.8 in 65mm / 2.6 in 73gr / 2.36 ounce

All Models Three are pupil distance: 59-61mm,61-63mm,63-65mm

All Models There are three pupil distance: 59-61mm,61-63mm,63-65mm

All Models Average weight including (medium) frame: 73gr / 2.36 ounce
